AVR Dragon Quick Connector PCB From OSH Park

OSH Park pretty much rules. This was my first toe into making a PCB to be produced. I used Eagle to design it and OSH Park to get it made. A week or so later, I got these boards in the mail:

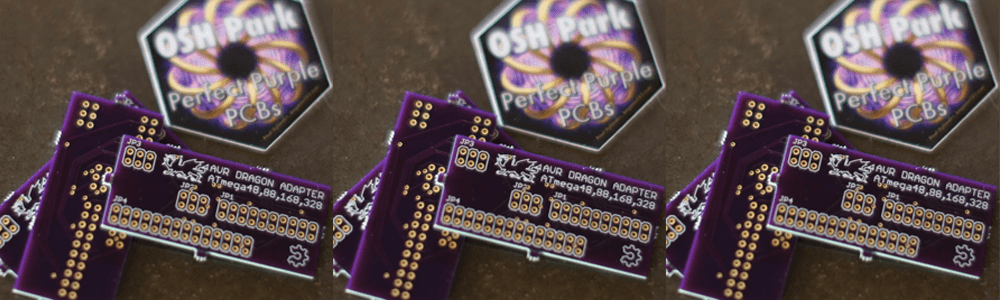

OSH Park AVR Dragon boards

I added a combination of female and male headers to the Dragon and a ziff socket in the programing area. The completed board and Dragon look like this:

AVR Dragon and adapter with headers

See Fig 6-5 in the AVR Dragon User Guide for how this is hooked up. Feel free to order this board fron OSH Park
